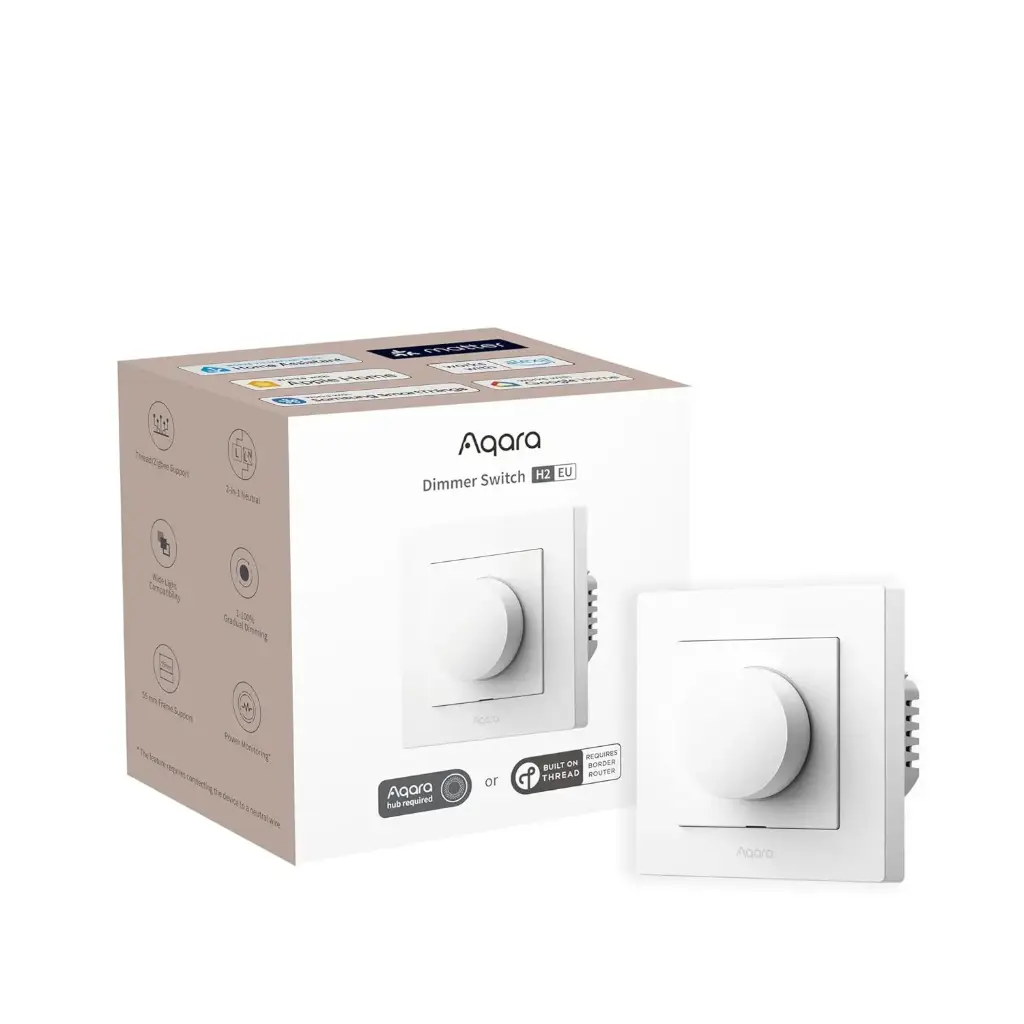

Aqara Dimmer Switch H2 Thread/Zigbee
Aqara Dimmer Switch H2 EU — Smart Light Control
- The Aqara Dimmer Switch H2 EU is a high-end smart lighting solution that offers unparalleled flexibility and precision. Designed for the European market, it supports both Thread and Zigbee protocols, ensuring future-proof compatibility with Matter-enabled ecosystems. Whether your home has a neutral wire or not, the H2 Dimmer provides smooth, flicker-free dimming from 1% to 100%.
Key Features

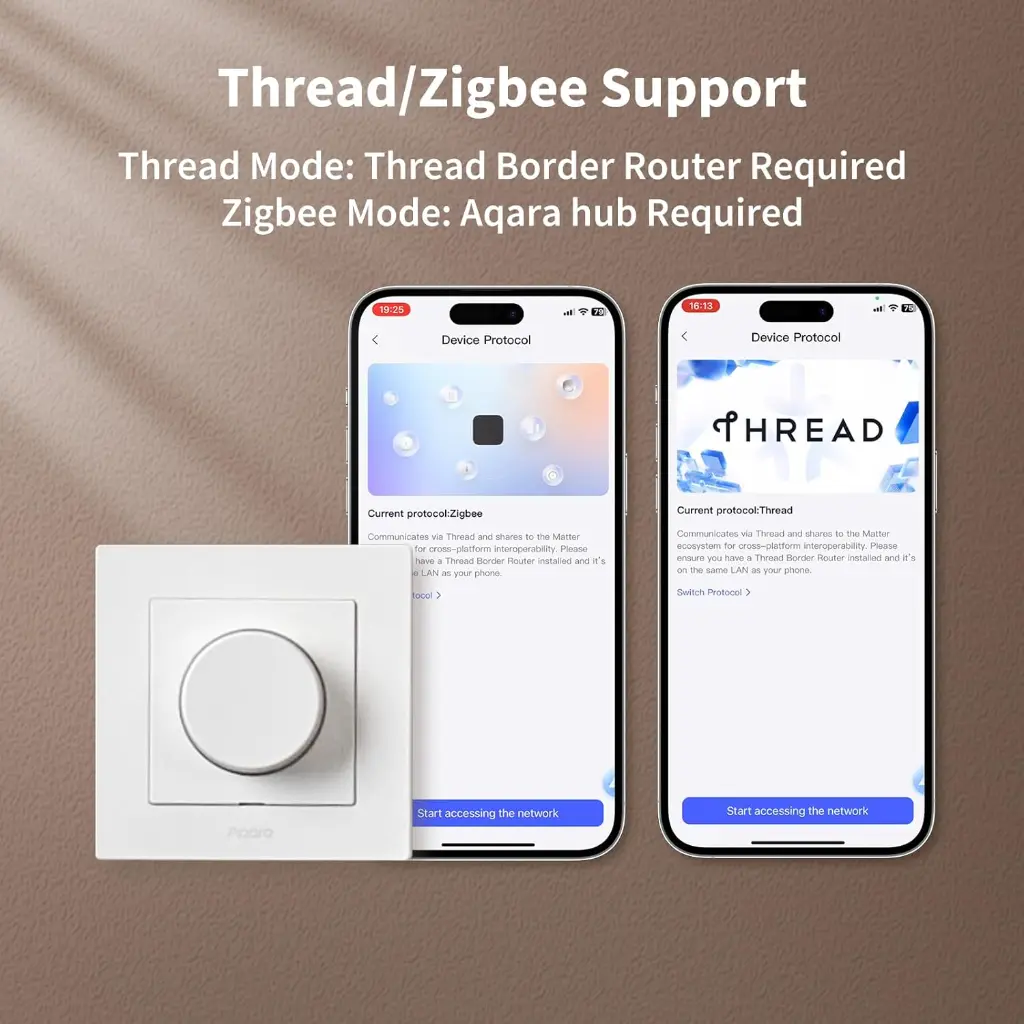

- Dual Protocol Support (Thread & Zigbee): Use Thread mode for direct integration with Matter ecosystems (Apple Home, Google Home, Alexa) via a Thread Border Router. Use Zigbee mode with an Aqara Hub to access advanced power monitoring and exclusive Aqara Home features.

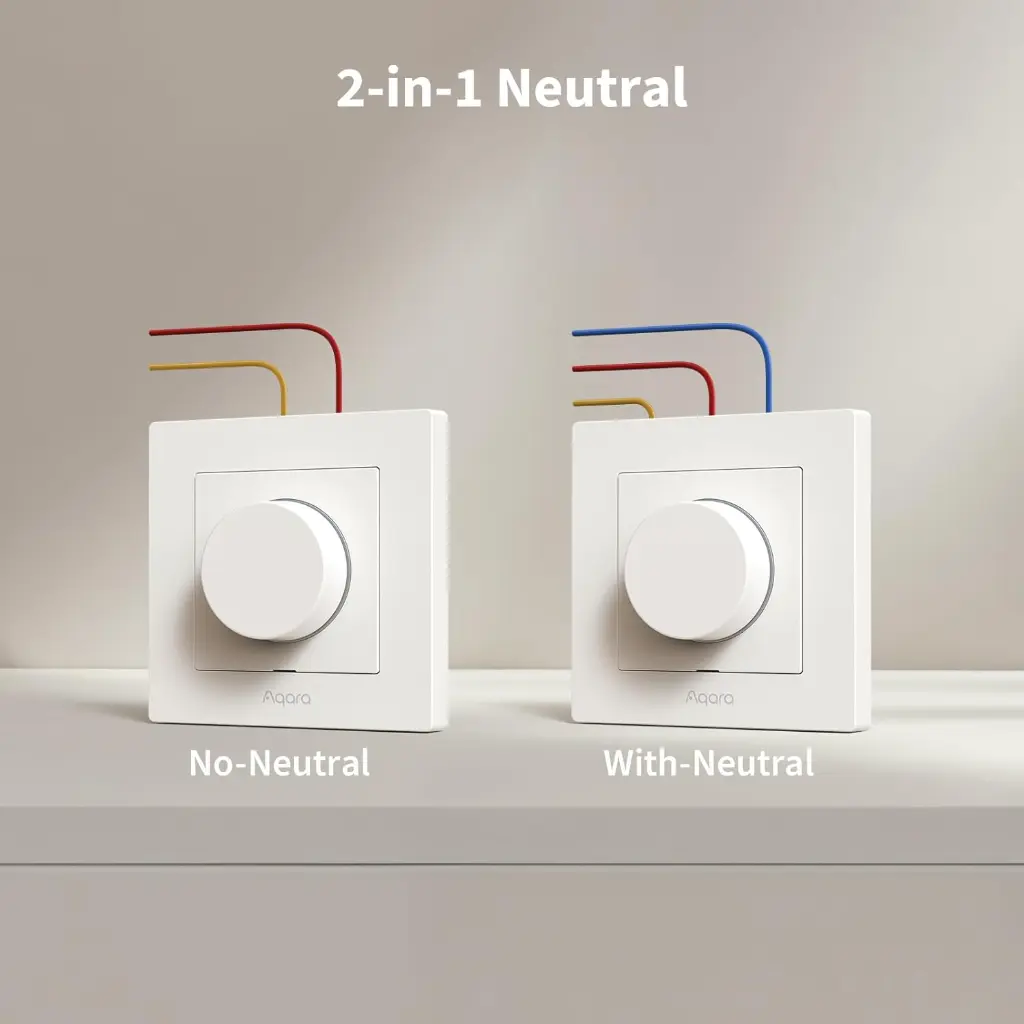

- Universal Wiring (Neutral & No-Neutral): Hassle-free installation designed to work in any home. It supports both "no-neutral" and "with-neutral" setups. When wired with a neutral, additional overload protection and enhanced stability are enabled.
- Multi-Functional Rotary Dial: Features a built-in wireless switch for intuitive manual control. Enjoy soft, ambient transitions and precise dimming without flickering.
- Wide Fixture Compatibility: Supports dimmable LED/CFL/ELV lamps (up to 200W) and Incandescent/Halogen bulbs (up to 350W). Note: MLV fixtures are not compatible.

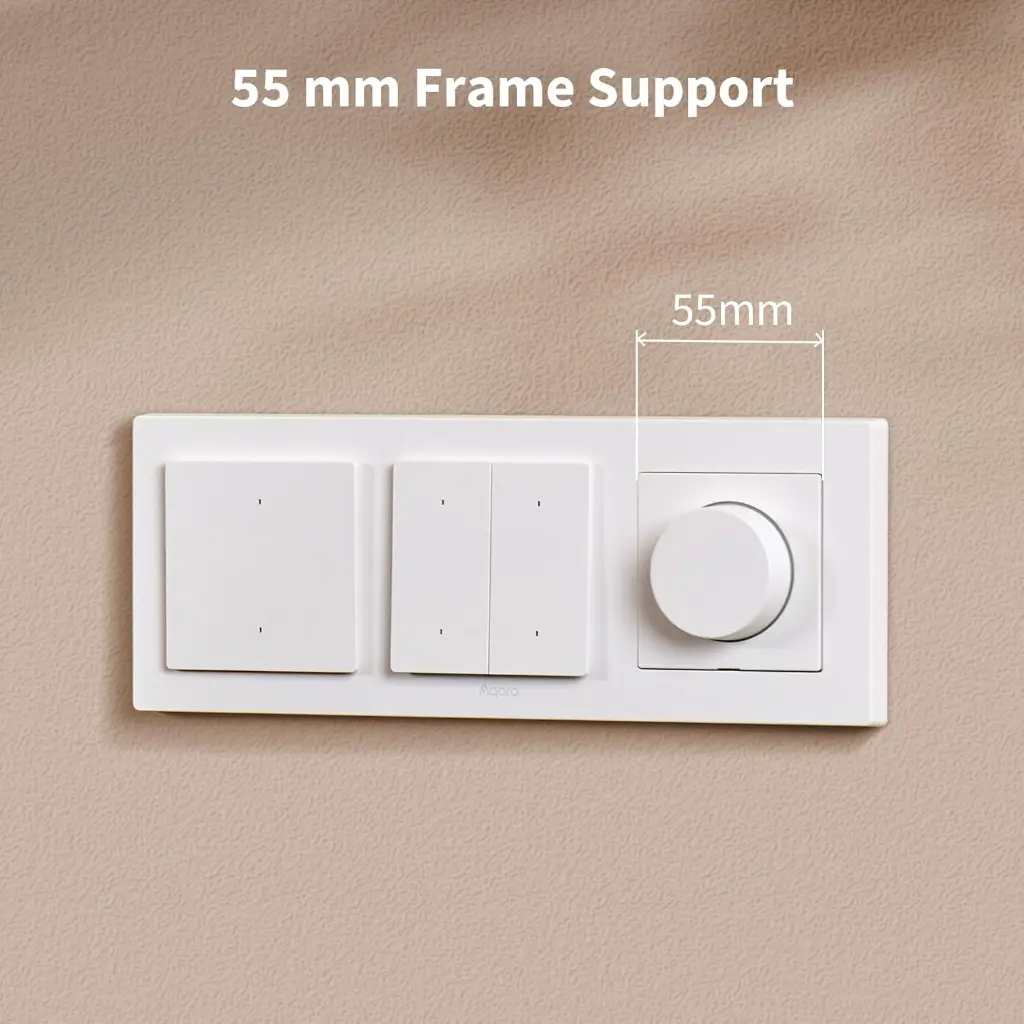

- Modular 55mm Design: Fits standard European 55mm switch module systems. It is compatible with third-party multi-frames such as Gira System 55 and Merten M, offering seamless aesthetic integration.
- Smart Features: Includes power consumption monitoring (best in Zigbee mode) and the ability to control smart bulbs (like Aqara LED Bulb T2) in "on/off" mode when neutral wiring is present.
Technical Specifications
- Wireless Protocols: Thread, Zigbee 3.0
- Operating Voltage: 220V AC
- Max Load: 200W (LED/CFL), 350W (Incandescent/Halogen)
- Min Power Requirement: 4W (Matter) / 9W (Standard)

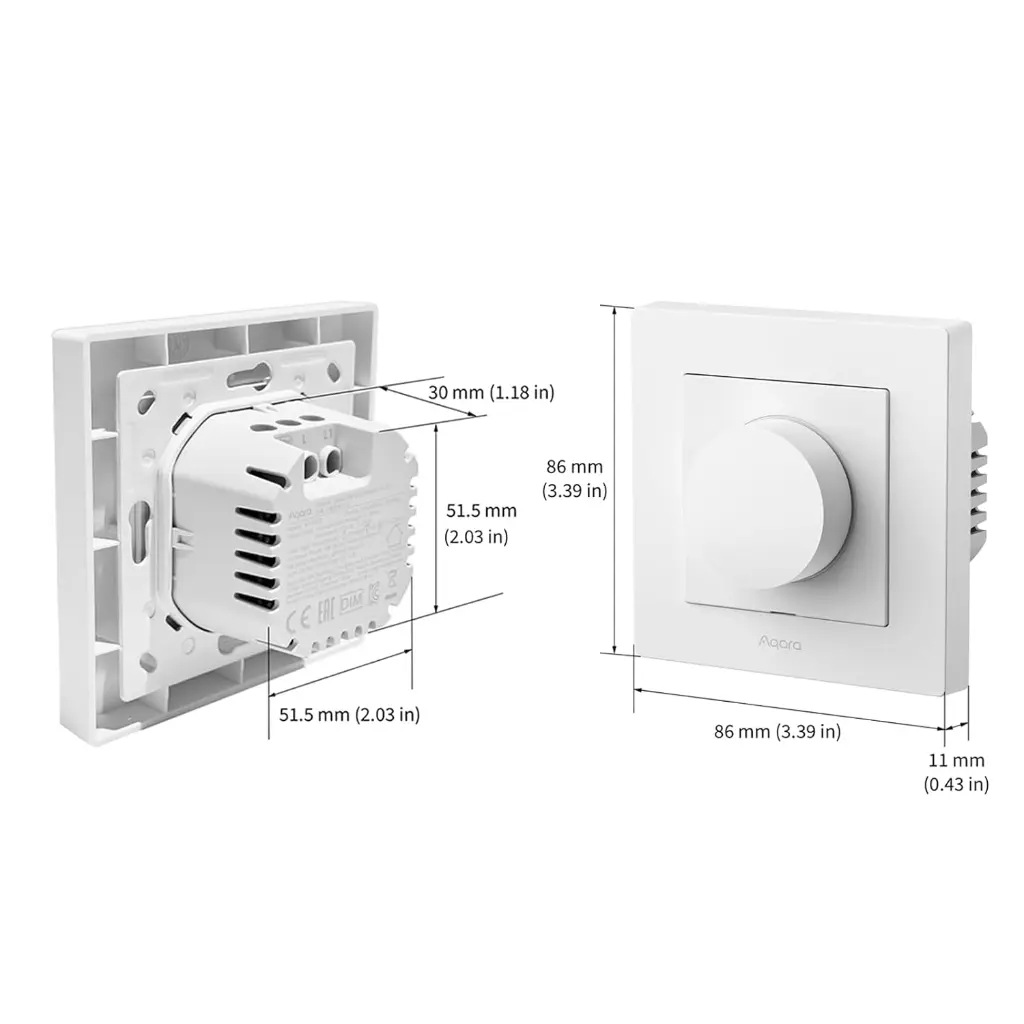

- Dimensions: 86 × 86 × 55.45 mm (Depth in wall: 34.6 mm)
- Mounting Depth: Minimum 40 mm wall box required
- Control Methods: Rotary Actuator, App Control, Voice Control (Alexa, Siri, Google)
- Certifications: CE, EAC, UKCA, RoHS
| BRAND: Skillos |
| Protocol: Thread + Zigbee |
| Voltage: AC 220V |
| Max Load: 200W |
| Color: White |
