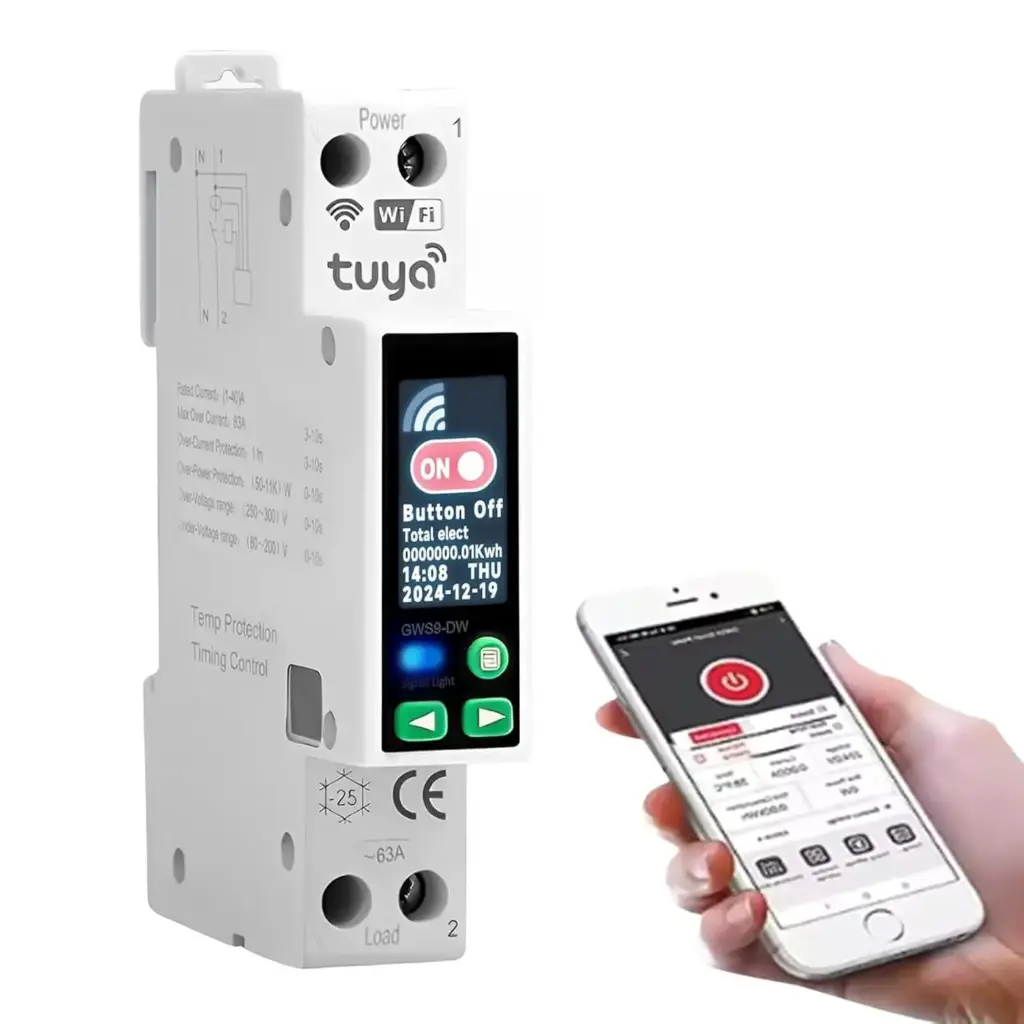

Tuya Smart Circuit Breaker 1P+N 40A WiFi
Smart WiFi Circuit Breaker with Energy Monitoring & LCD Display
Product Overview:
- A high-performance smart circuit breaker designed for DIN-rail installation. This device combines remote power management, real-time energy metering, and comprehensive electrical protection into a single compact unit, fully integrated with the Tuya / Smart Life ecosystem.
Key Features:
- Intelligent Protection: Operates as a smart circuit breaker with programmable thresholds. Automatically disconnects the circuit upon detecting overvoltage, undervoltage, overload, overpower, or high temperatures to ensure maximum safety.

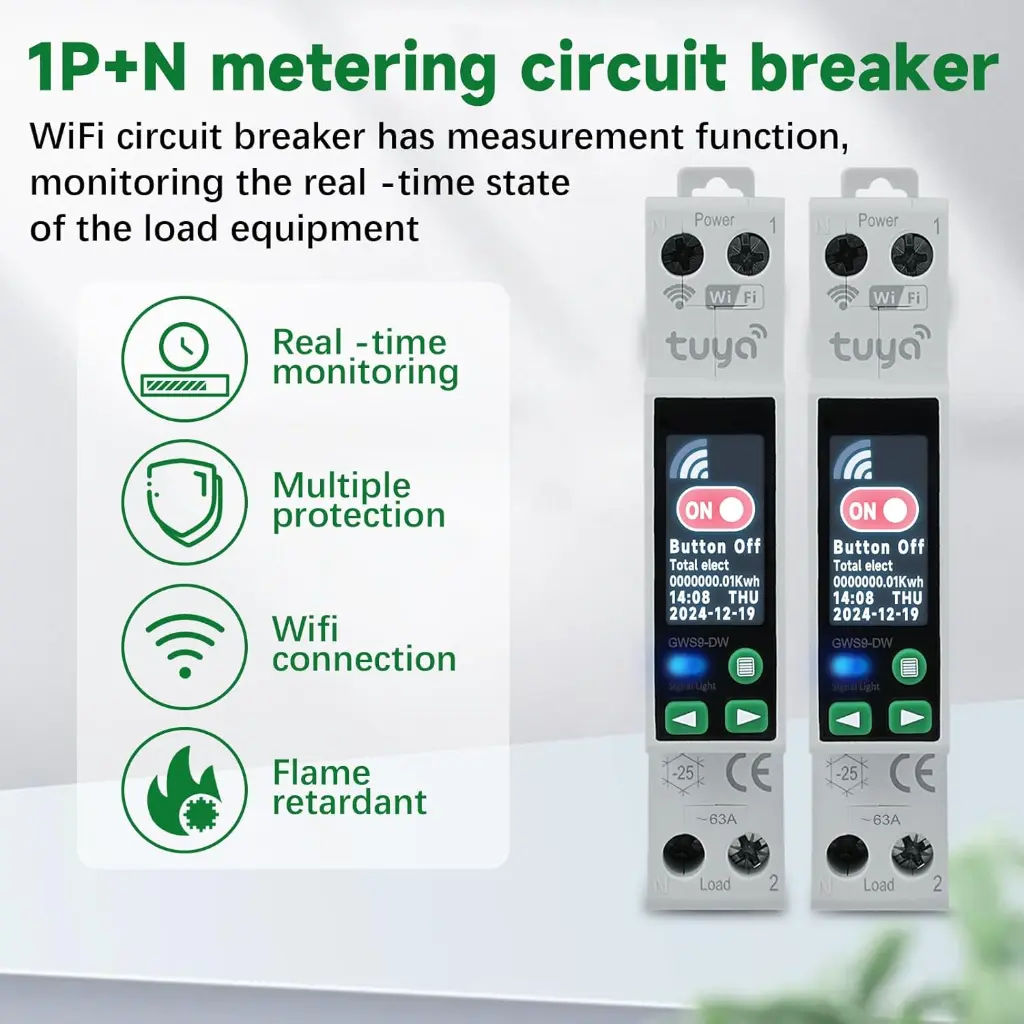

- Real-Time Energy Metering: Monitor current (A), voltage (V), and power (W) in real time via your smartphone. Track historical consumption data by hour, day, month, or year to analyze and reduce energy loss.

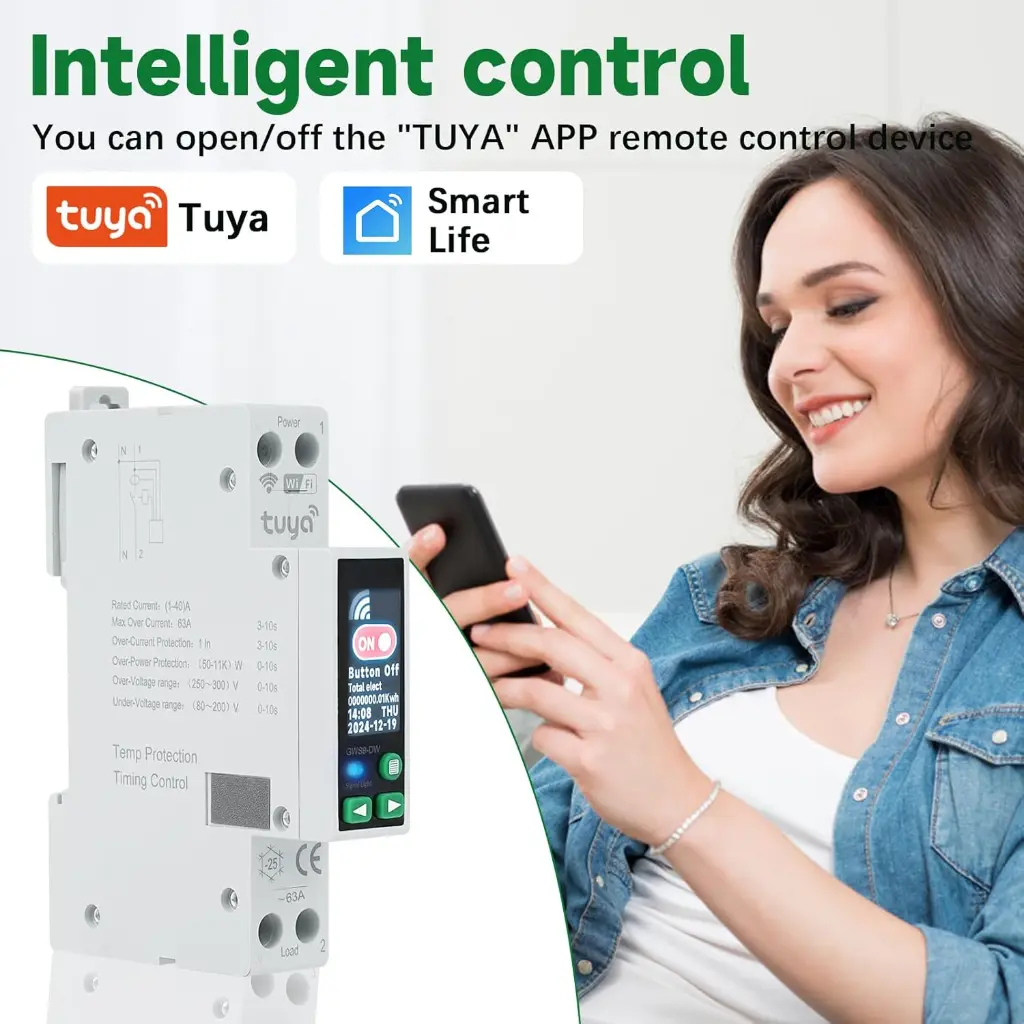

- Remote & Manual Control: Toggle the on/off status of your devices from anywhere via the Tuya App.
- Advanced LCD Display: Features a high-quality color backlight display showing WiFi status, real-time electrical parameters, temperature, and local date for intuitive at-a-glance monitoring.
- Versatile Application: Designed for standard DIN-rail mounting, making it ideal for residential smart homes, schools, markets, industrial facilities, and laboratories.

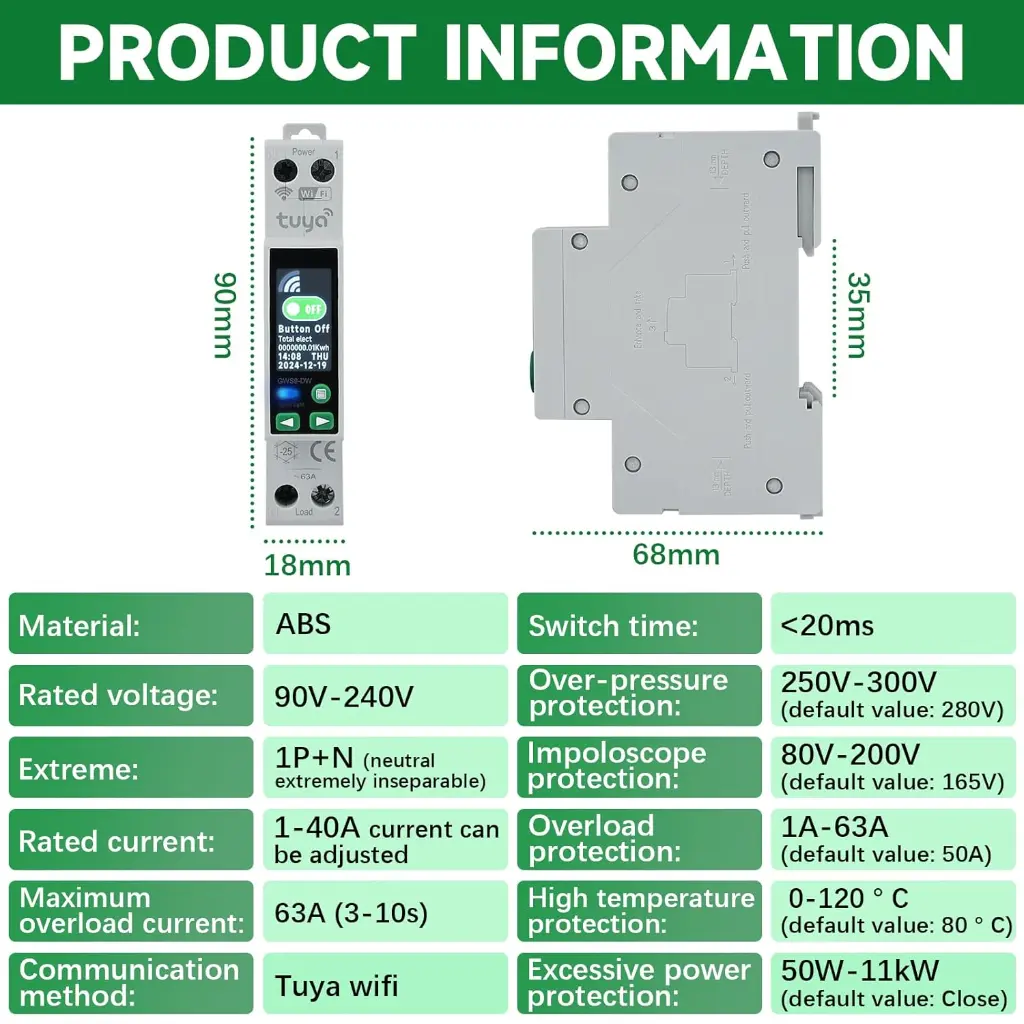

Technical Highlights:
- Communication: WiFi 2.4GHz
- Installation: Standard DIN Rail
- Indicators: Visual Blue LED for operating status
- App Support: Tuya Smart / Smart Life (iOS & Android)
| BRAND: Skillos |
| Protocol: WI-FI |
| Phase: 1P+N |
| Max Load: 40A |
| Voltage: AC 90V-240V |
| Electricity Meter: Yes |
| App Support: Tuya Smart / Smart Life (iOS & Android) |
| Installation: Standard DIN Rail |
